Mixers, Collectors, Feeders & Drinkers

Commercial-grade TMR mixer for cattle feeding

Home » Products » Animal Husbandry Machine » Stationary TMR Mixer » 8-9 m³ Single Auger Stationary TMR Mixer for livestock farm

8-9 CBM Single Auger Stationary TMR Mixer

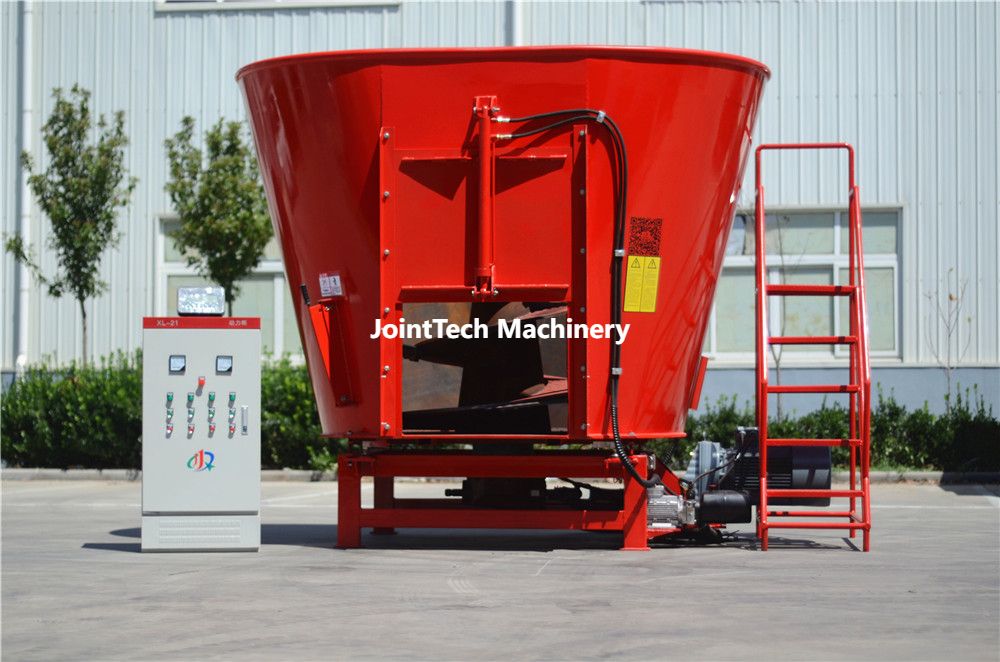

TMR Feed MIxer of Dairy Cattle and Sheep Farm

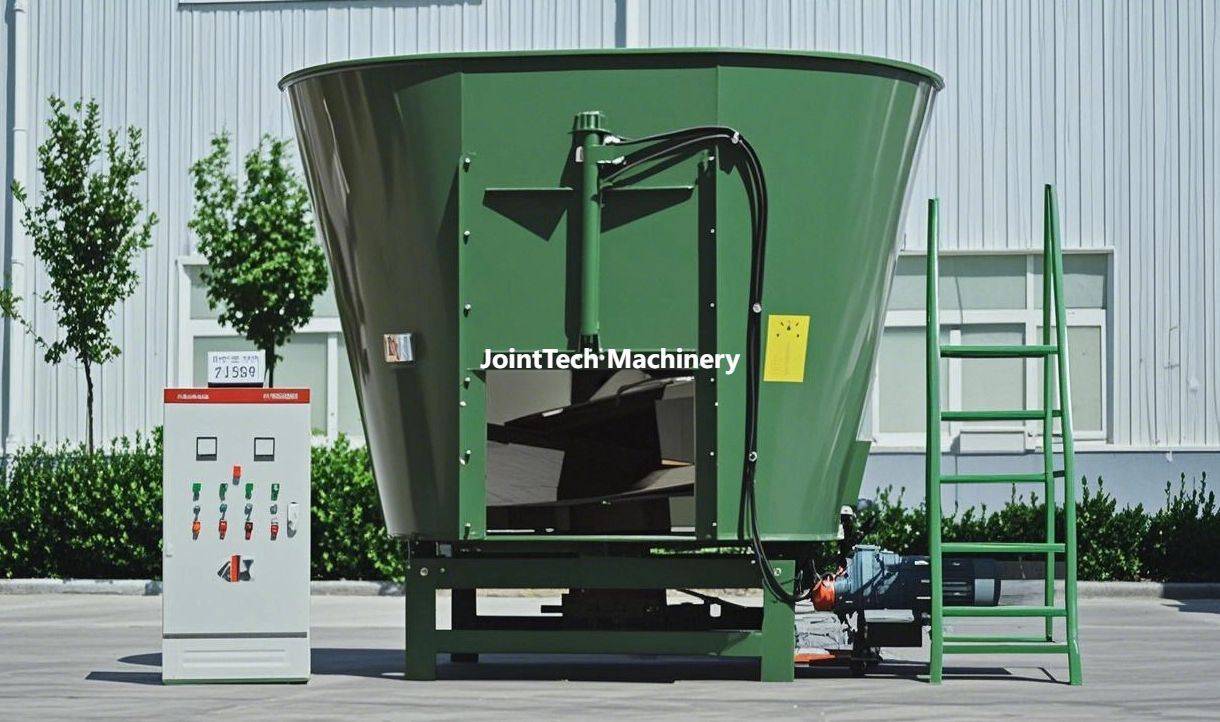

8-9 m³ Single Auger Stationary TMR Mixer for livestock farm

STMR series machine is a stationary feed mixer, featuring a single vertical auger, and a chain or belt conveyor is optional. The mixed feed is discharged by the conveyor into a spreader. Vertical single auger TMR mixer is suitable for small and medium-sized farms such as beef cattle, dairy cows, goats, horses, etc.

Model:
STMR-08； STMR-09
Brand:
JOINTTECH

Availability:

Quantity:



Inquire Add to Basket

TMR Mixer cow feed mixer feed cutting machine animal feeder mixer fodder mixer straw mixing machine small tmr mixer animal feeder feed mixture machine

Product Description

Feeding Guidelines

FAQ

Single Vertical Auger Stationary TMR Mixer：

In large farms where the feeding stations are spread over a large area, it can be advantageous to mix the feed in a central location and then to discharge it using a delivery truck. A stationary feed mixer can also be a great solution on small farms.

The machine is powered by electricity, saving on fuel costs, making it a more suitable choice for modern farming.

Its structure is simple, low maintenance and high work efficiency.

Performance characteristics

High uniformity of mixing: It can fully mix various additives such as roughage, concentrate, minerals, vitamins, etc., ensuring that every bite of the animal's diet is a stable ratio of concentrate to roughage and a consistent nutrient concentration of the full value diet.

Protecting feed nutrition: 25-32 revolutions per minute, minimal damage to feed fiber structure, and able to maintain feed nutrition for a longer period of time.

Wide applicability: Fiber based feed such as silage, various bales, straw, etc. can be directly fed into a mixer for shredding and mixing, suitable for both large and medium-sized breeding farms as well as rural scale breeding farms.

Save labor costs: The mixing speed is fast, and depending on the volume of the box, each feed mixer can feed 200-2000 cows per day, replacing the work of more than 20 workers, reducing their labor intensity, and improving feeding efficiency.

Long service life: Italian gearboxes and material boxes made of thick wear-resistant steel plates are usually used, and all accessories are heat-treated to reduce failure rates and extend machine service life.

Box Material: Q355B Steel

The mixing box is 8 mm thick steel plate, and the thickness of the bottom plate is 16 mm.

The Q355B steel has the high-quality wear and corrosion resistance.

Vertical Auger

Driven by the motor and reducer, the central shaft drives the spiral blades to rotate. The feed is cut by means of the auger and the rotation of the blade.

Cutting Blade

The cutting blade is 8mm thick and made of manganese steel. It has a good cutting effect on feed materials, improving the palatability and digestibility of the feed.

High Power Motor

The 22KW motor drives the reducer to work continuously and stably, which is an environmentally friendly machine.

Weight Sensor

The weighing system is sensitive and stable, realizing digital and precise feeding.

Weight Display Screen

Workers control the amount of feeds added through the numbers on the weight display.

Feeding Guidelines

When it comes to adding feed, there are important principles to follow. The basic rule is to adhere to the order of dry first then wet, fine first then rough, and light then heavy according to the formula.

Start with long grass.

Such as Leymus chinensis, wild hay, alfalfa, and oat grass.
Next, add the concentrated feed.

Additives include raw grain and concentrated feed, as well as apple flour, cottonseed, distiller's grains, etc.
After that, silage is added.

Finally, silage, water, molasses and other feeds are added to increase the palatability of the feed.

Adding Feed order:

(1) Basic principles: according to the formula to follow the first dry after the wet, the first fine after the rough, the principle of light and heavy;

(2) Add order:

A. Long grass (Leymus chinensis, wild hay, alfalfa, oat grass)

B. Concentrate (raw grain, concentrated material, etc.)

C. Accessories (apple meal, cottonseed, wet beer distillers, etc.)

D. Silage

E. Water or molasses

(3)In the mixing process should be noted that the charge can not be too full, leaving a certain amount of mixing cycle space.

Whether you are operating a large commercial farm or a small-scale breeding farm, this mixer can meet the needs of your farm and help improve the overall productivity of the farm.

For a quote or to learn more about this product, please feel free to contact us through the provided channels. Our team is always ready to assist you and provide the necessary information to help you make an informed decision.

FAQs

What are the wiring methods, voltage, and hertz requirements of stationary TMR mixers?

Our standard motor is a 380V 50HZ three-phase AC motor. When wiring, pay attention to the correct phase and avoid reverse connection.The voltage fluctuation should not exceed ±10% and the frequency should be stable at 50HZ to ensure the normal operation of the equipment and extend its service life.If your local voltage and Hertz are different, we can provide customized services.
How does the throwing function of a stationary TMR mixer work?

The normal stirring auger speed of mixer is 25 rpm (50 Hz), when the throwing function is turned on, the auger speed is 45 rpm (80HZ) and maintained for 15-20 seconds. In this way, the feed accumulated on the auger blades can be thrown out under the action of centrifugal force and swept out from the discharge door by the sweeping plate. Ensure that the discharge is clean, there is no debris inside, and it will not become moldy due to high temperature and humidity.
What brand is the weighing system?

We use top Chinese brands or American Avery Weigh-Tronix weighing systems, the display screen supports English display, the weighing display screen protection level is IP68, and the measuring accuracy is C1±2kg.
How do I choose a feed mixer that's right for my farm?

Please let us know the distance between the feed area and the cowshed, the number of farm animals, the width of the feeding alley, the size of the site, etc. We will recommend the appropriate model of TMR mixer for you.
