Precision-Engineered Livestock Solutions for Global Farms. High-Efficiency Mixers, Collectors & Feeders Designed to Maximize Your Productivity.

Commercial-grade TMR mixer for cattle feeding

Home » Products » Animal Husbandry Machine » Stationary TMR Mixer » 6-7 m³ Single Auger Stationary TMR Mixer with Diesel Engine Durable Steel Construction

6-7 m³ Single Auger Stationary TMR Mixer with Diesel Engine Durable Steel Construction

6-7 m³ Single Auger Stationary TMR Mixer with Diesel Engine Durable Steel Construction

6-7 cubic meter stationary feed mixer is suitable for medium-sized farms. The box material is made of Q355B steel plate, which is wear-resistant and corrosion-resistant. Driven by a motor for mixing, equipped with a single vertical auger and weighing system, stable and durable, low maintenance cost.

Model:
STMR-06； STMR-07
Brand:
JOINTTECH
Code:
8436100000

Dimension:	3160×1890×2380 mm
Base Plate:	Q355 material, thickness 16 mm
Side Plate Thickness:	8 mm
Tungsten Carbide Blades:	6 main blades
Discharge Door Motor:	1.5 KW
Full Load Mixing Capacity:	2400 KG
Equipment Self-weight:	2000 KG
Availability:

Quantity:



Inquire Add to Basket

feed Mixer TMR Feed Mixer animal feeder mixer stationary feed mixer small tmr mixer straw mixing machine feed mixture machine feed mixing machine

Product Description

Feeding Guidelines

FAQ

Qualification Certificate

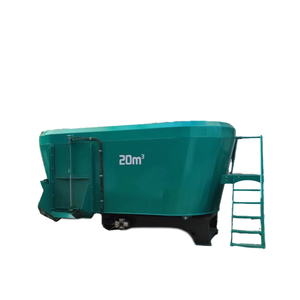

Vertical Stationary TMR Mixer

Boasting strong adaptability, this stationary mixer fits diverse farm scenarios effortlessly. For commercial farms, it acts as a central feed mixing hub—after uniformly blending various ingredients (including forages, grains, and supplements), the mixed feed can be easily loaded onto transport vehicles for wide distribution.

For small and medium-sized farms with limited space, it can be flexibly paired with conveyor systems (e.g., screw or belt conveyors) to deliver feed directly to troughs or silos. This dual-adaptation design meets the needs of both large-scale intensive and small-scale decentralized farming.

Box Material: Q355B Steel

The mixing box is 8 mm thick steel plate, and the thickness of the bottom plate is 16 mm.

The Q355B steel has the high-quality wear and corrosion resistance.

Vertical Auger

Driven by the motor and reducer, the central shaft drives the spiral blades to rotate. The feed is cut by means of the auger and the rotation of the blade.

Cutting Blade

The cutting blade is 8mm thick and made of manganese steel. It has a good cutting effect on feed materials, improving the palatability and digestibility of the feed.

High Power Motor

The 22KW motor drives the reducer to work continuously and stably, which is an environmentally friendly machine.

Weight Sensor

The weighing system is sensitive and stable, realizing digital and precise feeding.

Weight Display Screen

Workers control the amount of feeds added through the numbers on the weight display.

Advantage

① Italian Komair gearbox

② Imported weighing system

③ Cutting blade thickness 8MM, tungsten carbide alloy

④ Box thickness 8-16mm, box bottom thickness 16-28mm

⑤ ① Using high-quality NM400 wear-resistant steel plate

⑥ The American weighing system is sensitive and stable, with clear display and support for connecting feeding software to ensure precise feeding

⑦ Chint Electric, durable and long-lasting

⑧ Equipped with variable frequency start and material throwing function

Feeding Guidelines

When it comes to adding feed, there are important principles to follow. The basic rule is to adhere to the order of dry first then wet, fine first then rough, and light then heavy according to the formula.

Start with long grass.

Such as Leymus chinensis, wild hay, alfalfa, and oat grass.
Next, add the concentrated feed.

Additives include raw grain and concentrated feed, as well as apple flour, cottonseed, distiller's grains, etc.
After that, silage is added.

Finally, silage, water, molasses and other feeds are added to increase the palatability of the feed.

During the mixing process, it is crucial to note that the charge should not be too full. A certain amount of space for mixing circulation must be left.

For efficient mixing, the chassis should be given at least 20% free space for the feed to circulate and mix. This helps avoid the "arch bridge" phenomenon, where the feed does not circulate and mix properly, this phenomenon can increase the load on the auger and affect the mixing effect.

Whether you run a large commercial farm or a small - scale operation, this mixer can meet your specific needs and contribute to the overall productivity of your livestock management.

To get a quote or learn more about this product, please feel free to contact us through the provided channels. Our team is ready to assist you and provide the necessary information to help you make an informed decision.

FAQs

What are the wiring methods, voltage, and hertz requirements of stationary TMR mixers?

Our standard motor is a 380V 50HZ three-phase AC motor. When wiring, pay attention to the correct phase and avoid reverse connection.The voltage fluctuation should not exceed ±10% and the frequency should be stable at 50HZ to ensure the normal operation of the equipment and extend its service life.If your local voltage and Hertz are different, we can provide customized services.
How does the throwing function of a stationary TMR mixer work?

The normal stirring auger speed of mixer is 25 rpm (50 Hz), when the throwing function is turned on, the auger speed is 45 rpm (80HZ) and maintained for 15-20 seconds. In this way, the feed accumulated on the auger blades can be thrown out under the action of centrifugal force and swept out from the discharge door by the sweeping plate. Ensure that the discharge is clean, there is no debris inside, and it will not become moldy due to high temperature and humidity.
What brand is the weighing system?

We use top Chinese brands or American Avery Weigh-Tronix weighing systems, the display screen supports English display, the weighing display screen protection level is IP68, and the measuring accuracy is C1±2kg.
How do I choose a feed mixer that's right for my farm?

Please let us know the distance between the feed area and the cowshed, the number of farm animals, the width of the feeding alley, the size of the site, etc. We will recommend the appropriate model of TMR mixer for you.

We have obtained numerous domestic and international certifications—including High-Tech Enterprise status, EU CE certification, ISO 9001, and SGS certification—and have been verified as a "Gold Supplier" following on-site inspections by Alibaba. Currently, our equipment is utilized across 20 provinces in China, serving over 1,000 farms nationwide, and is exported to more than 40 countries and regions across Europe, the Americas, the Middle East, and Southeast Asia. We have successfully secured over 18 utility model patents and are committed to an R&D pace that adds 2–3 new patents annually, driving our vision of fully intelligent agricultural machinery; we strive to build a premier national brand and bring "Smart Manufacturing from China" to every corner of the globe.
