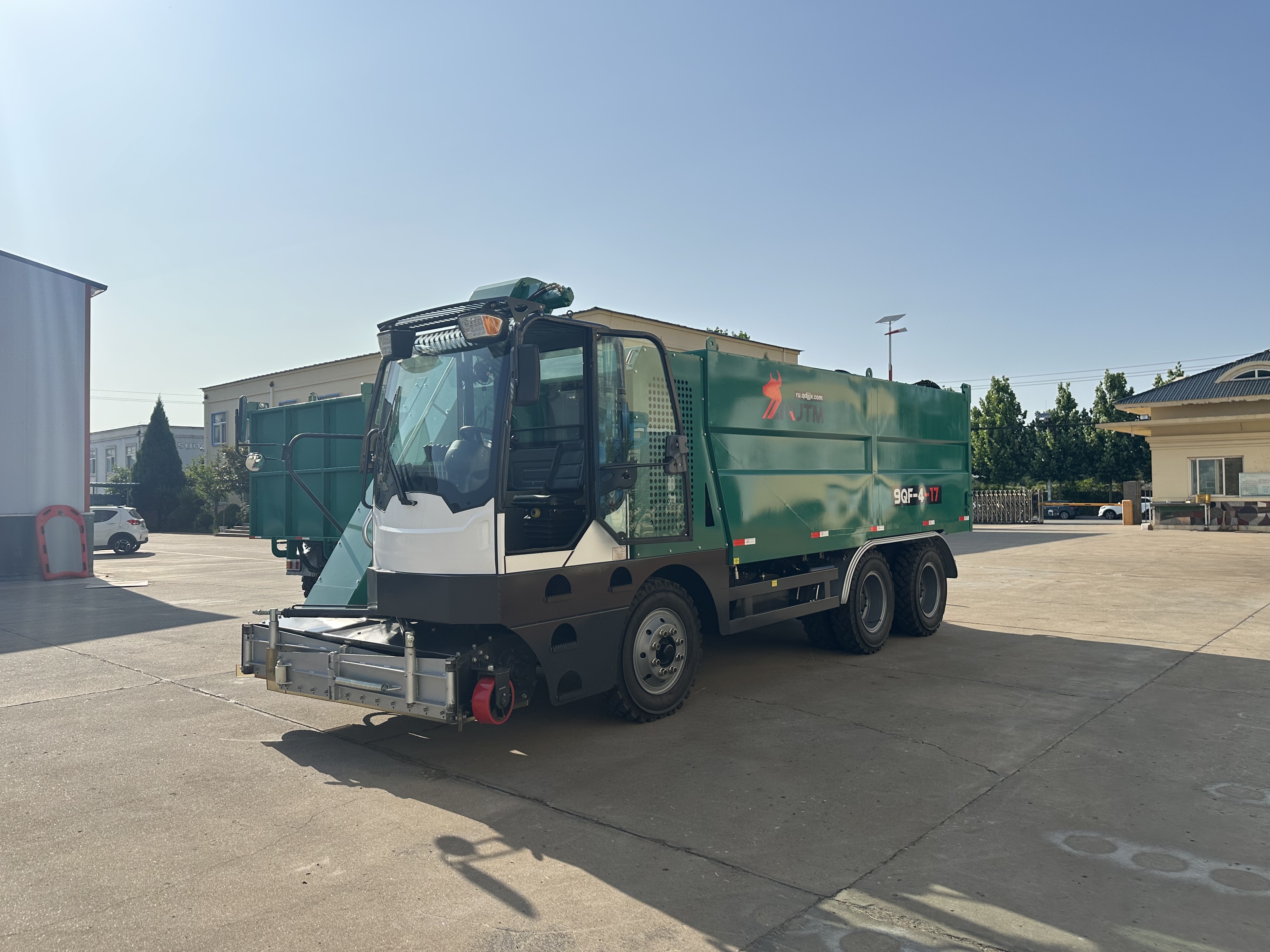

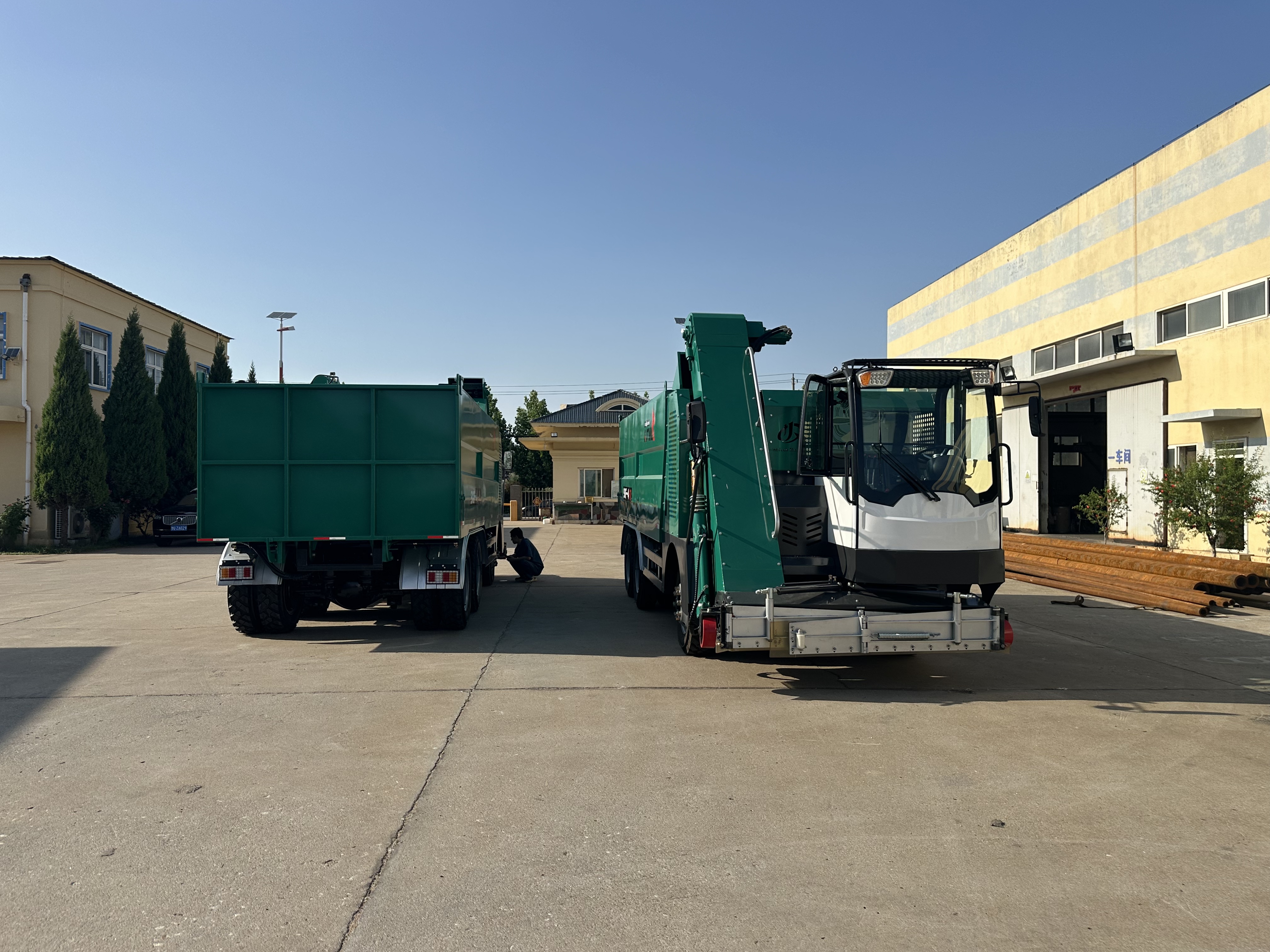

16m³--20m³ Cubic Meters Livestock Breeding Machinery Cow Dung Collector and Scraper Width Can Be Customized

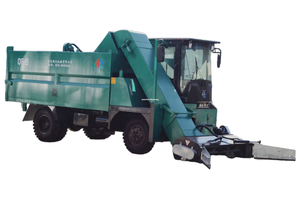

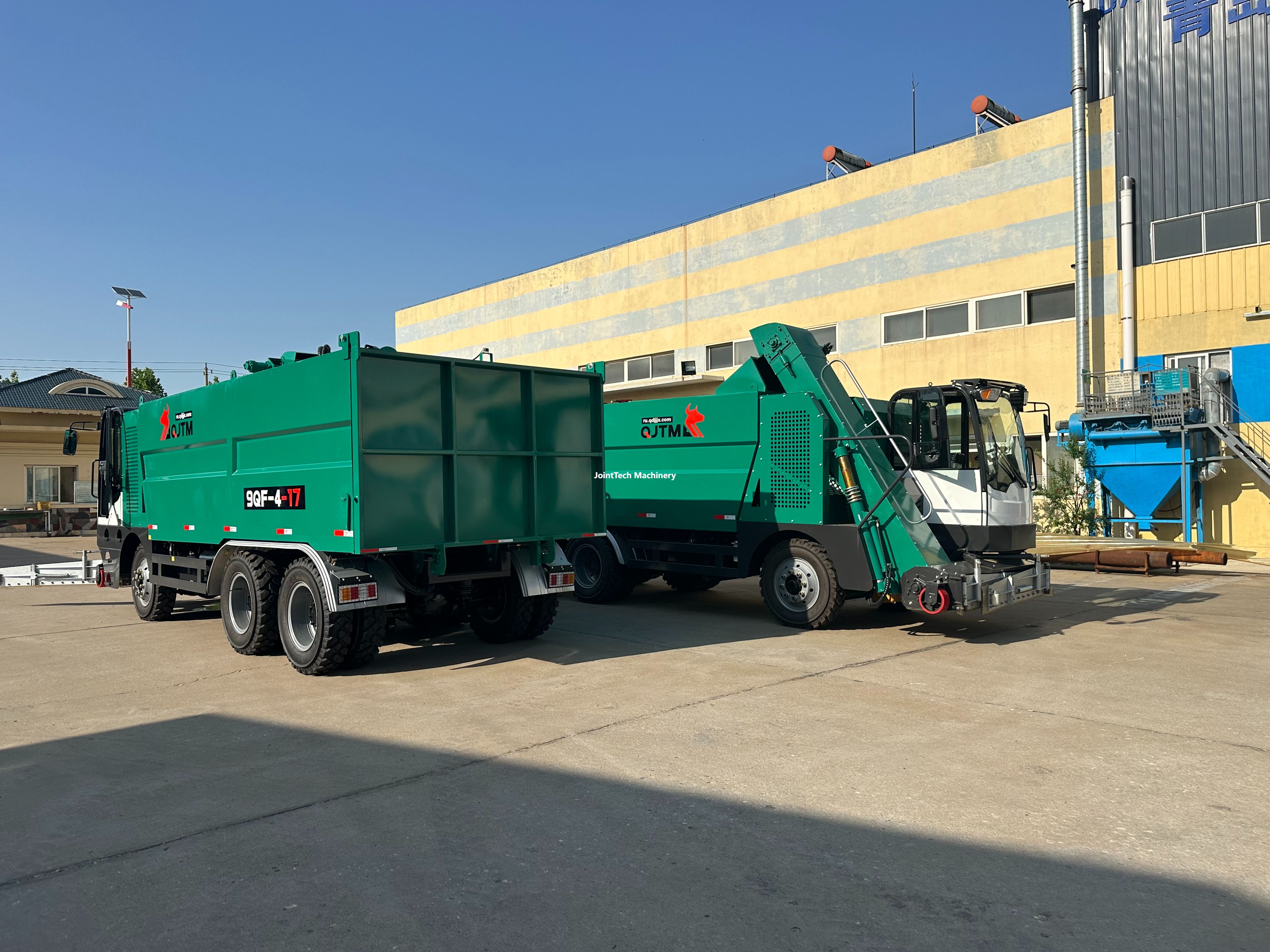

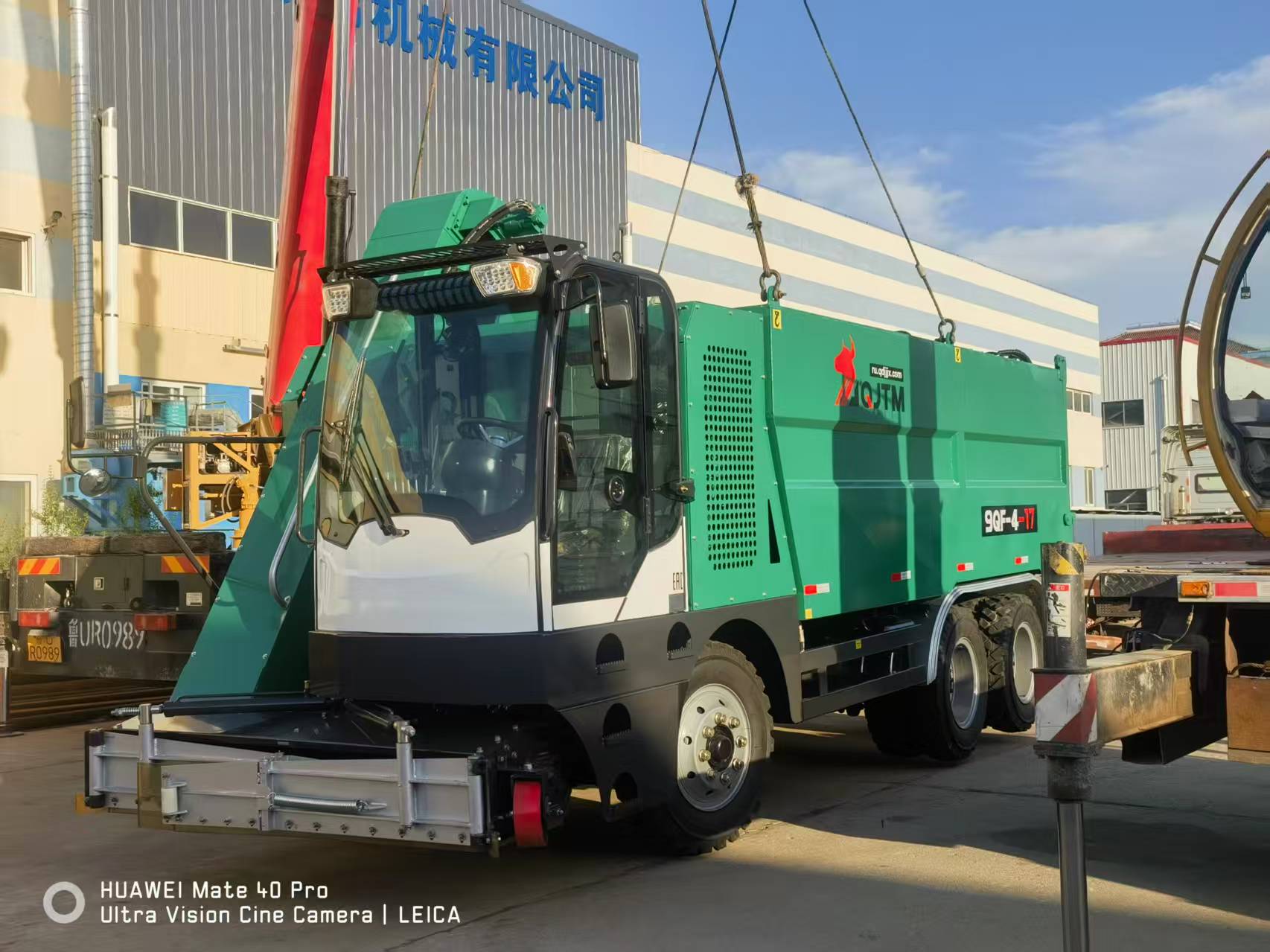

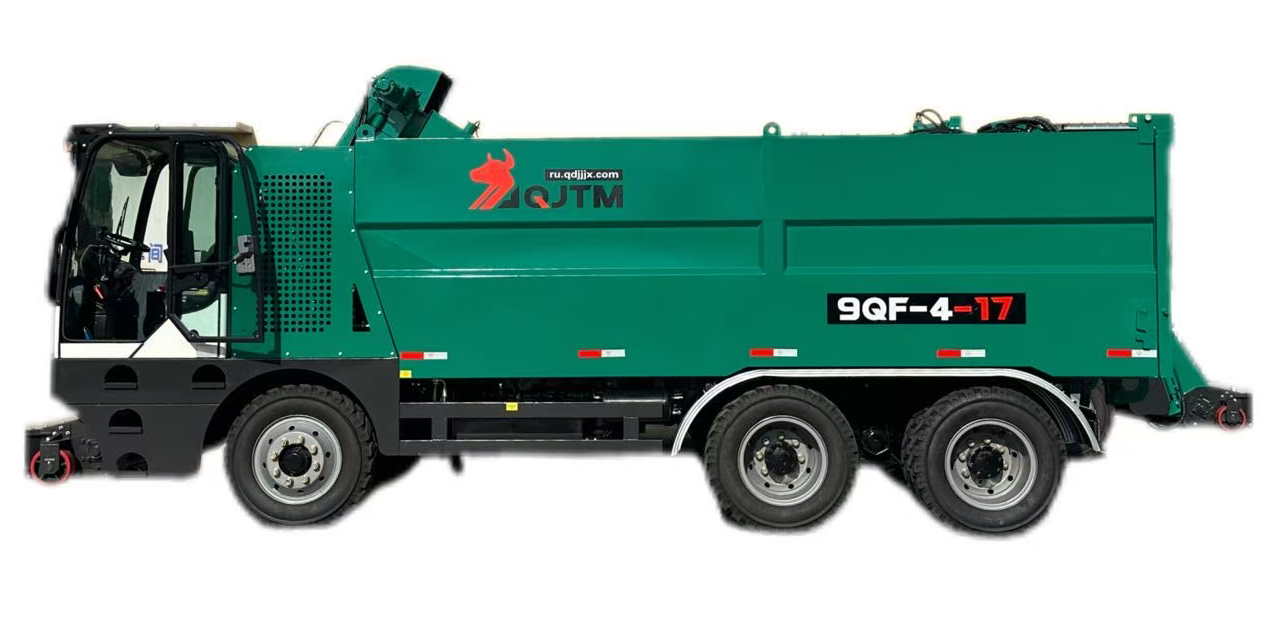

16m³-20m³ Cow Manure Collector

The manure collector machine is assembled from the frame and the carriage. The engine is driven by the diesel engine. The manure collector machine is mainly used for the collection of livestock manure in livestock farms such as cow sheds and beef cattle sheds.

Model:
QF-17
Brand:
Jointtech

Availability:

Quantity:



Inquire Add to Basket

new livestock farming machinery new animal husbandry equipment cow farming machinery stainless steel animal husbandry equipment motorized livestock cleaning vehicle TMR Feed Mixer

Product Description

Our Company

Payment and Shipping

FAQ

Product Description

Farmers struggle to maintain a stable cowshed to clean up cow manure, forcing them to spend more time or hire workers to earn more money. During a visit to a dairy farm, we observed a reluctance to collect cow manure manually. Cleaning up the manure of so many cows daily is a demanding task. During our interactions with dairy farmers, we learned that due to the nature of the work involved, there is a constant shortage of manpower.
This motivation led us to develop a machine to remove and collect cow manure without any physical contact.
The manure truck is made of Q355, the most durable steel. It consists of a frame and a rear bucket and is powered by a diesel engine. This machine is used to collect cow manure on farms and transport it to the desired location.

Model	QF-16m³-QF-20m³
Length * Width * Height (mm)	7580 * 2500 * 3030
Diesel Engine	Weichai
Power (HP)	160HP
Loaded Weight (kg)	9500
Power Source	Diesel
Working width	Customizable

Product Details

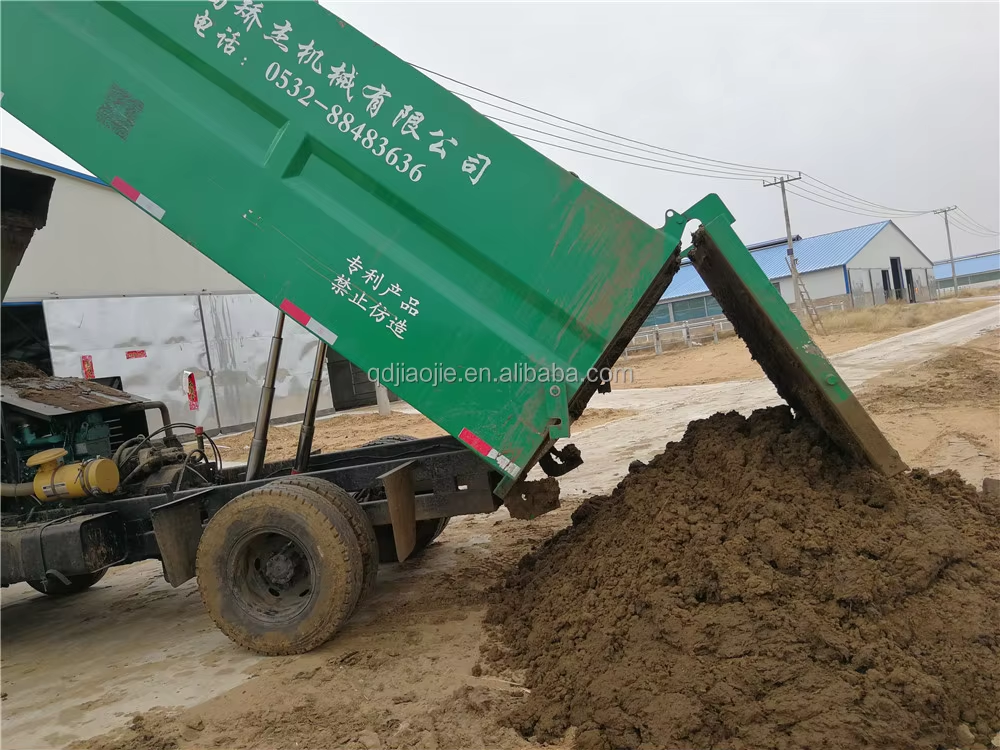

Self-unload Rod

The driver can operate the rear bucket rod to lift it up,the hydraulic jack will lift the bucket up enough,and the rear door will be automatically opened,without any physical contact.

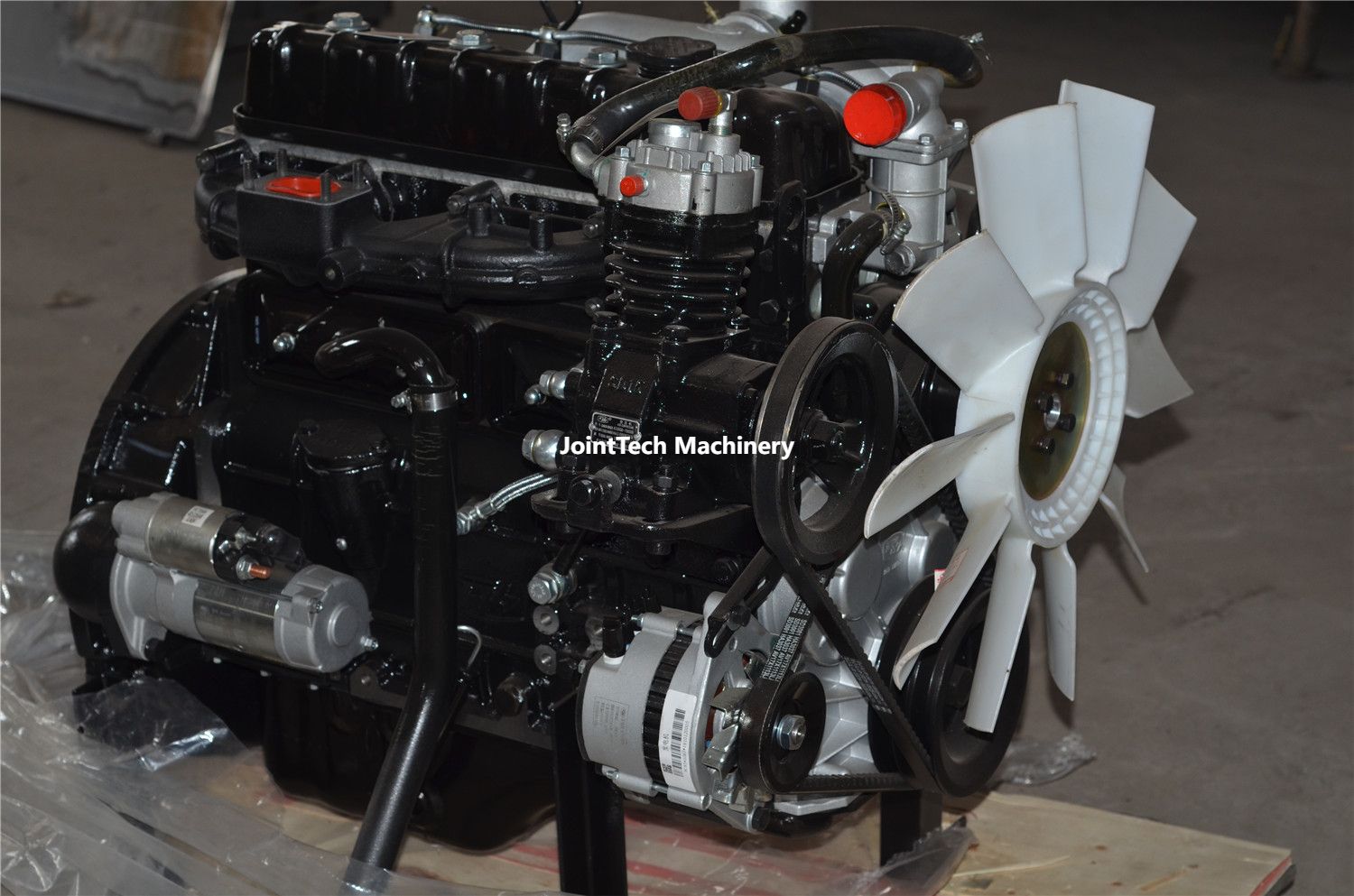

Diesel Engine

YUNNEI 490/4102/4105 powerful diesel engine

4 cyclinder,strong power and low fuel consumption,easy maintenance

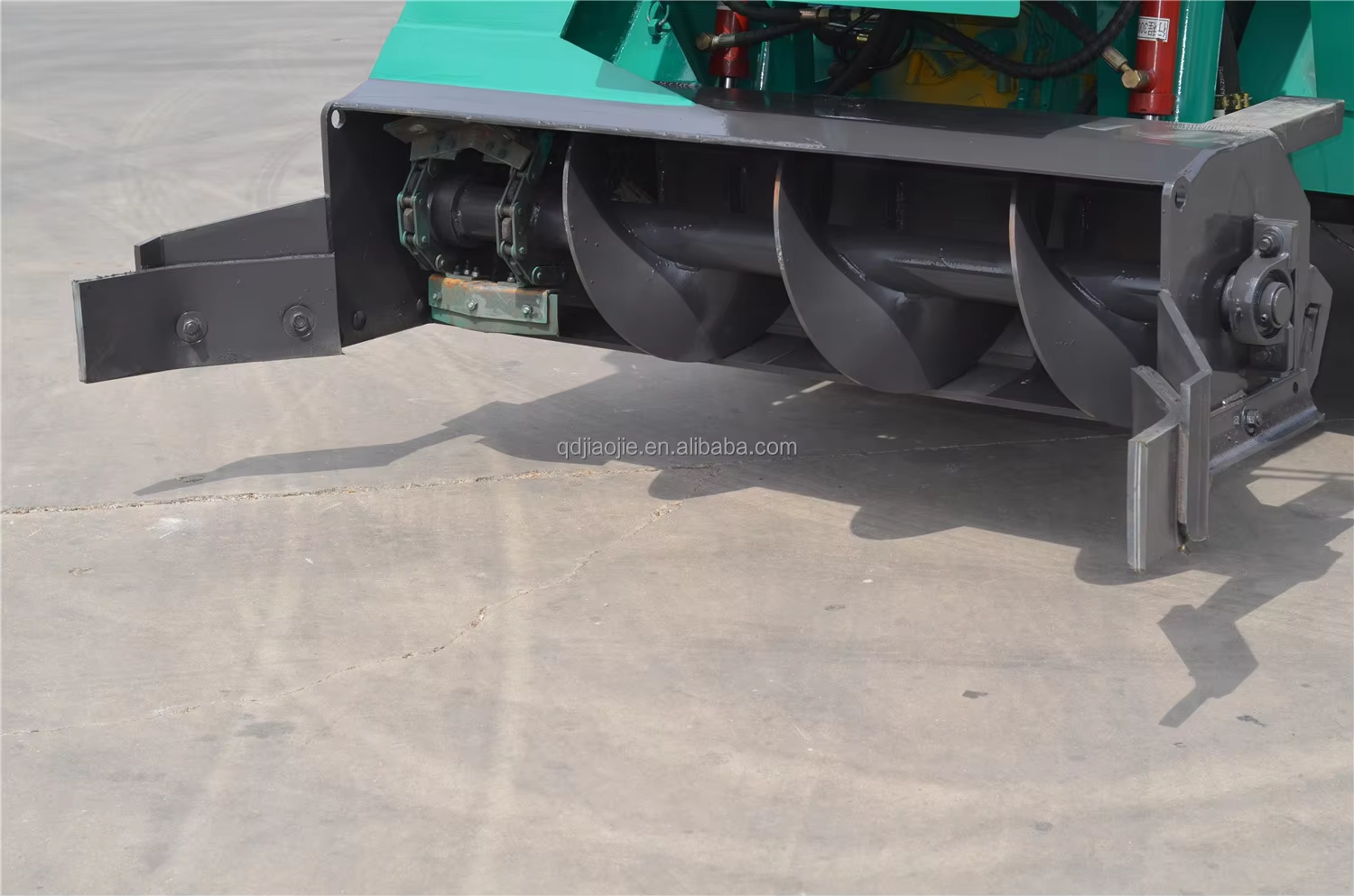

Sludge Removal Auger

The auger collects manure by rotating, preventing accumulation and ensuring efficient manure collection.

Bottom Wheel

Make the shovel slide to rub the ground with the ground to reduce resistance, no hurt the ground,and lower energy consumption.

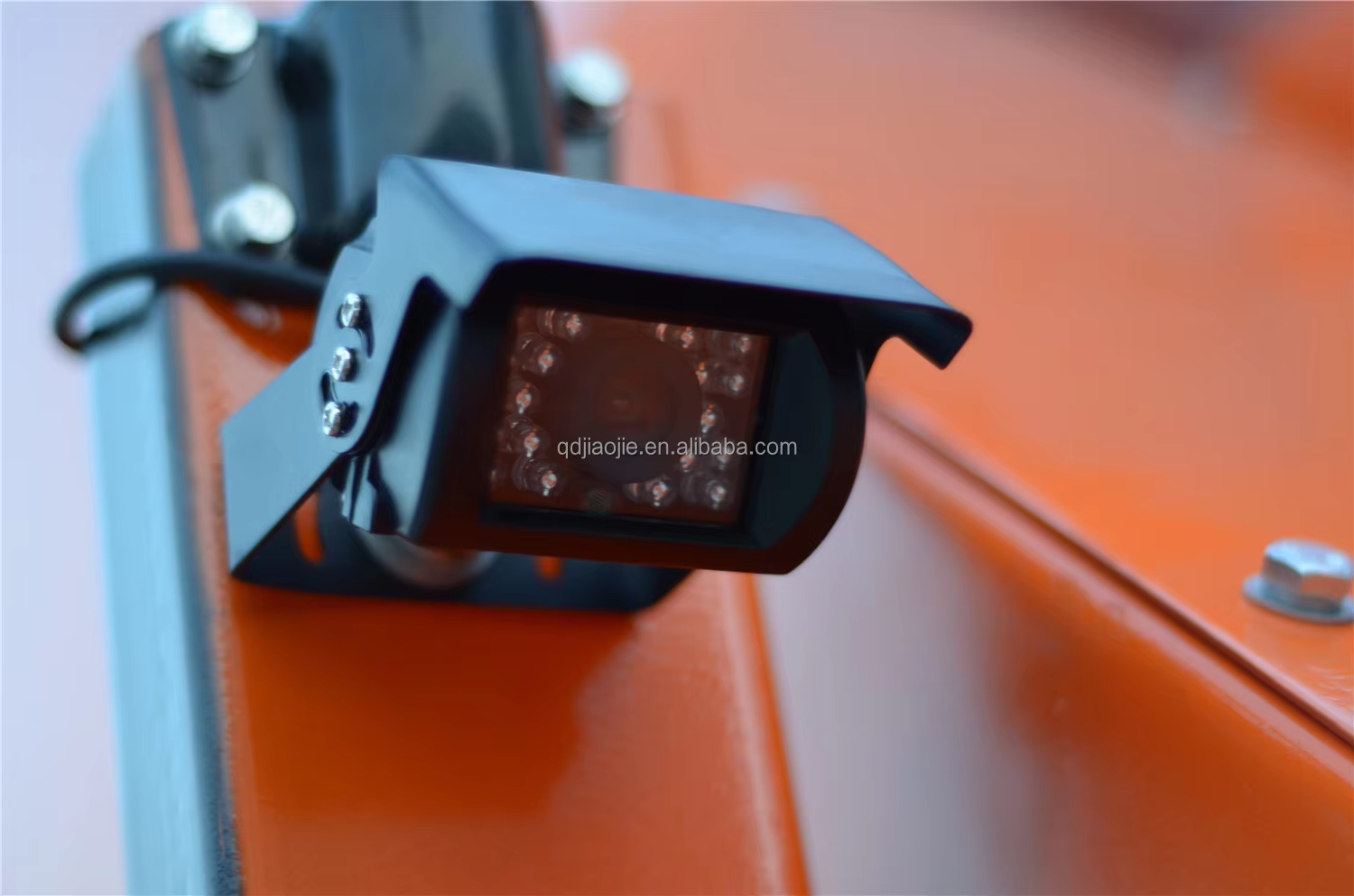

Camera

The camera is distributed in 3 positions: Front side Rear side Above the rear bucket box

Monitor display

The 3 cameras form a complete monitoring system. The driver can clearly observe the situation on the front and right side,Reversing, and the rear bucket inside. No blind spot.

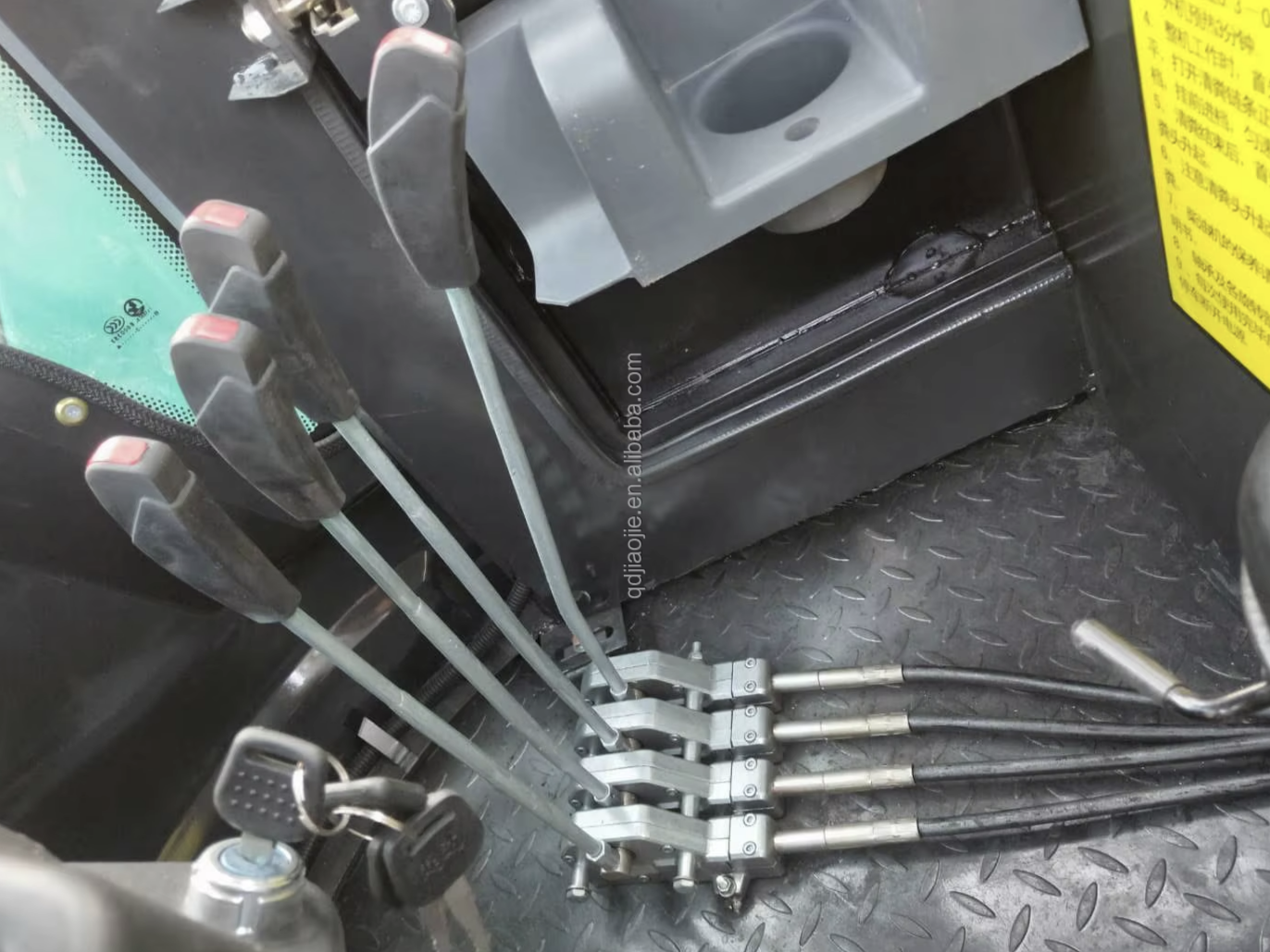

Operate Rod

Only need one driver sit on the cab to push and pull the rod to complete the dung work, save labor a lot.Easy to operate.

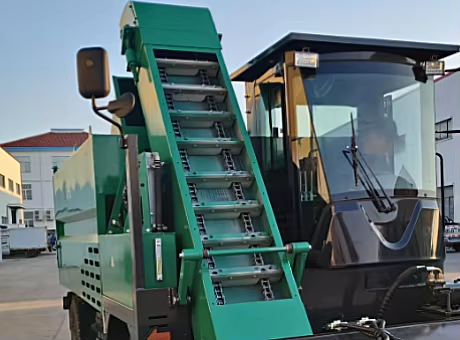

Chain Lifting

When the shovel collect some dung/manure, they will be transported into the rear back through the chain and rubber plates.

Flexible working width

The hydraulic oil cylinder expands the steel plate to both sides, which can freely adjust the width of the work. The maximum cleansing width can reach 3.6 meters,which greatly improves the work efficiency.

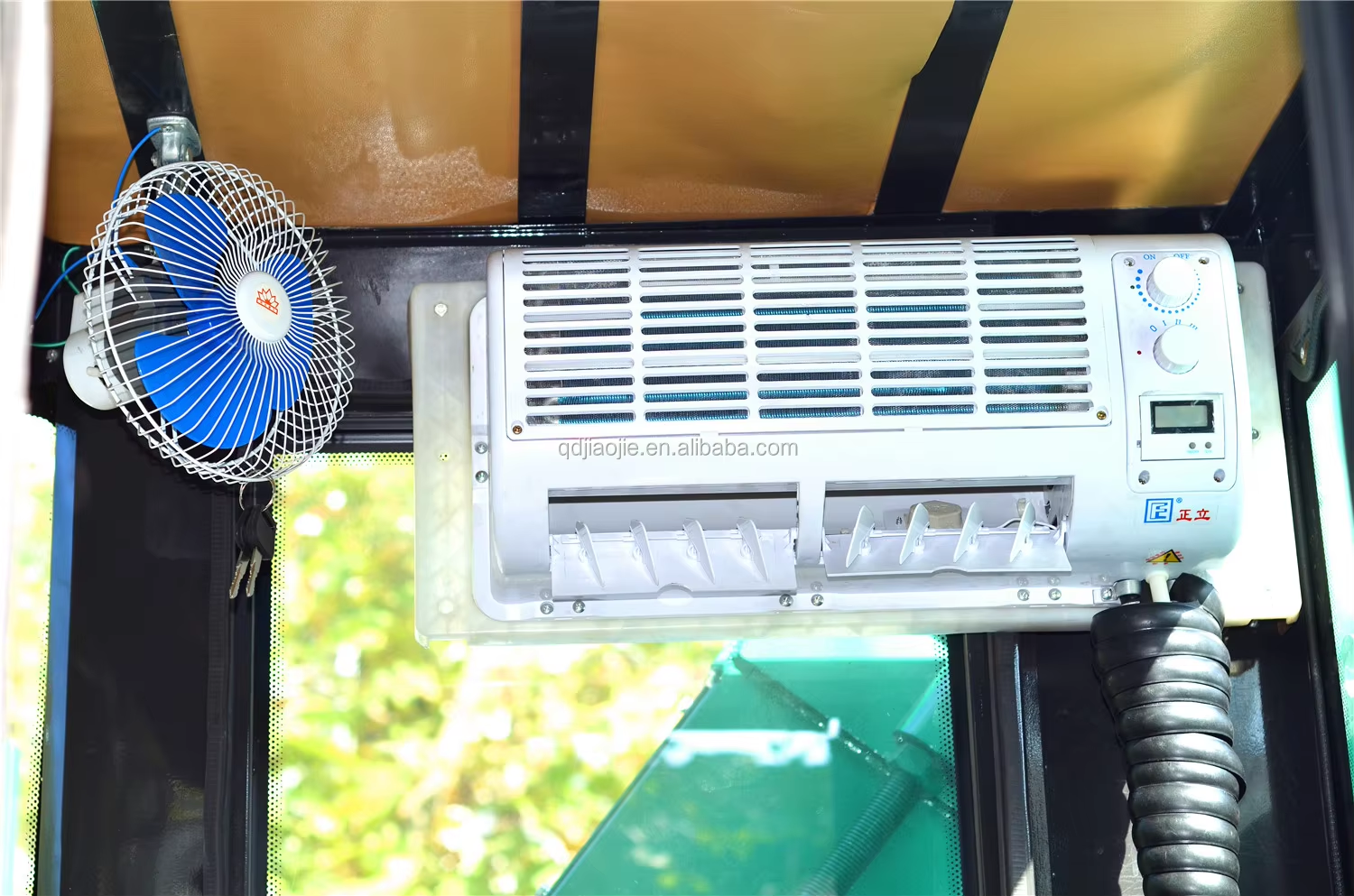

Air Conditioner,Fan

Comfortable working condition

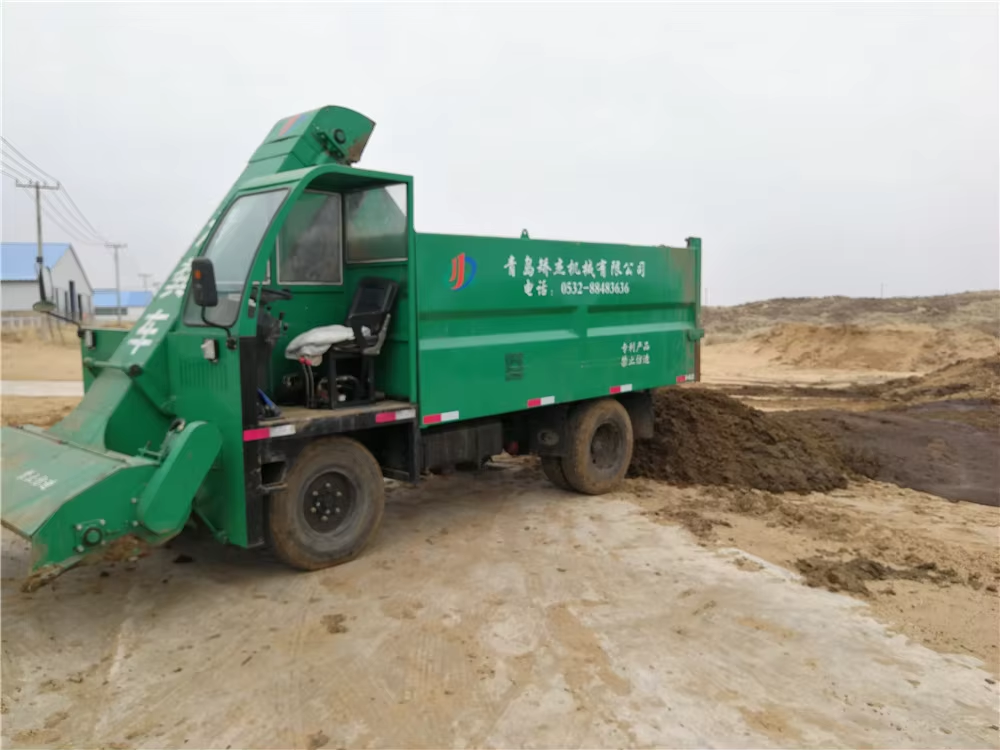

Use of cow dung collector

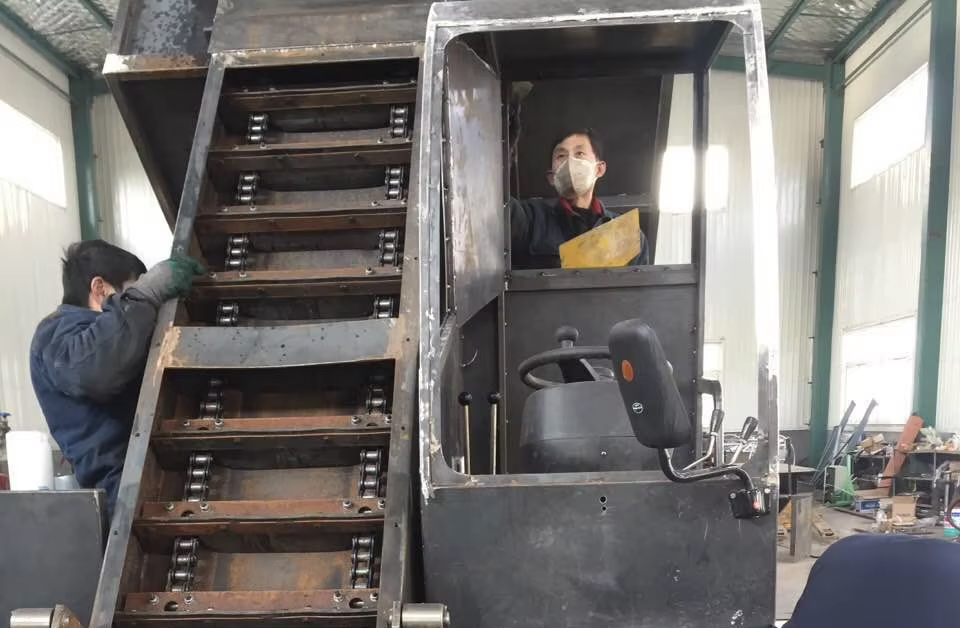

Production workshop

COMPANY PROFILE

Qingdao JointTech Machinery Inc., was established in February, 2016, it is a relatively young company integrating designing, manufacturing, marketing and serving. Since its establishment, it has quickly become the leading livestock farm manufacturer in China.
COMPANY PROFILE

We are committed to exploring the innovation in many fields such as farm machine,accurate feeding and intelligent farm,etc.The main product including TMR mixer machine,feeding machine,cow manure collector,drinking water equipment,hoof trimming machine, farm construction etc.
COMPANY PROFILE

Now our machine has covered 30 provinces in China, has served more than 500 farms across the country, and exported to more than 40 countries including Europe, America, the Middle East, Southeast Asia etc.We have successfully applied for practical new patents for more than 18 equipment
COMPANY PROFILE

it is committed to maintaining the goals of 2-3 patents each year, realizing the dream of the all intelligent farm machine, and striving to create a national brand, and let the "China Intelligent Manufactur-ing" spreads to all over the world.
COMPANY PROFILE

Our machines have certificates of conformity. Please rest assured to choose us.

COMPANY PROFILE

View More>
COMPANY PROFILE
COMPANY PROFILE
COMPANY PROFILE
COMPANY PROFILE

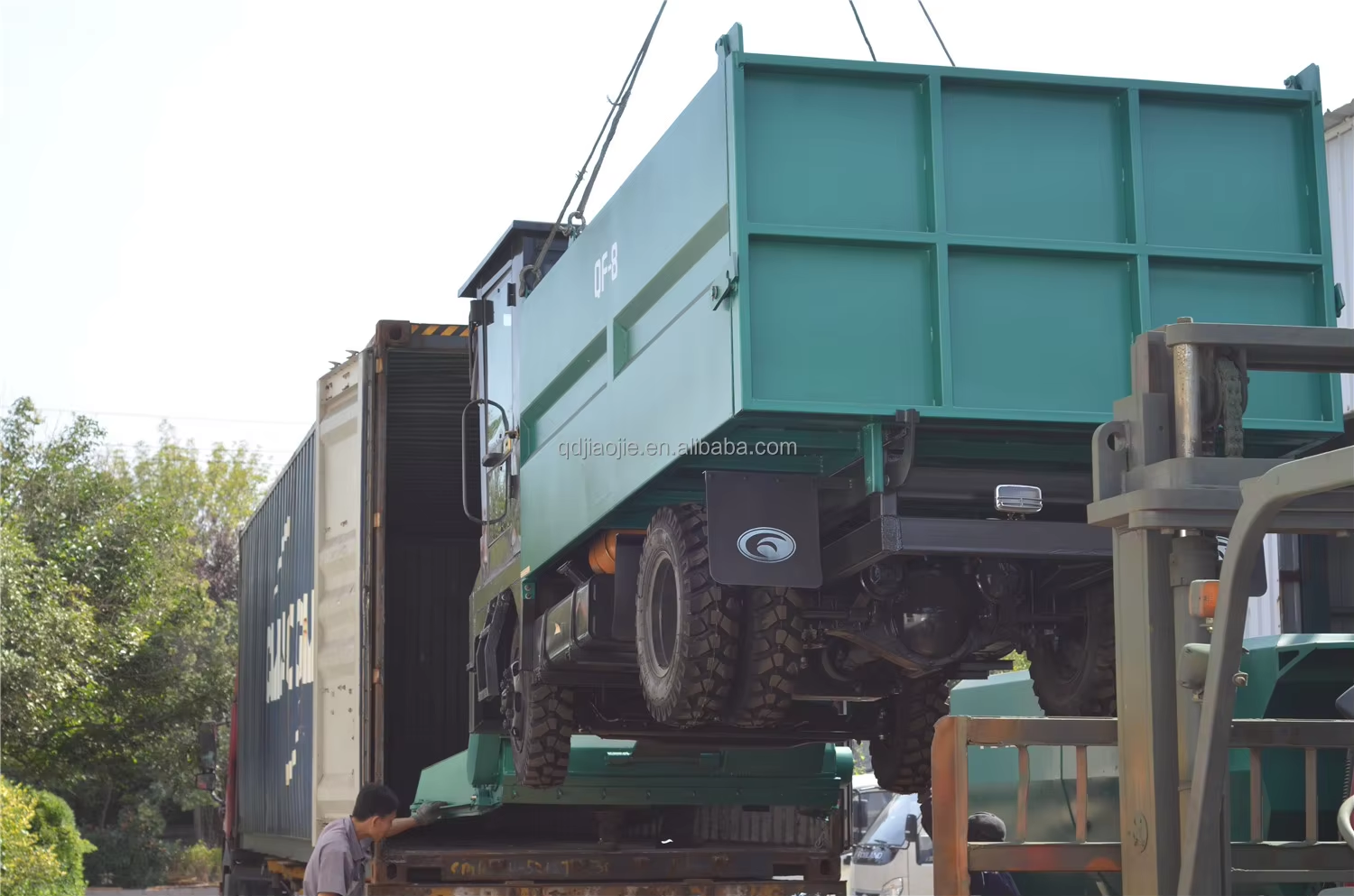

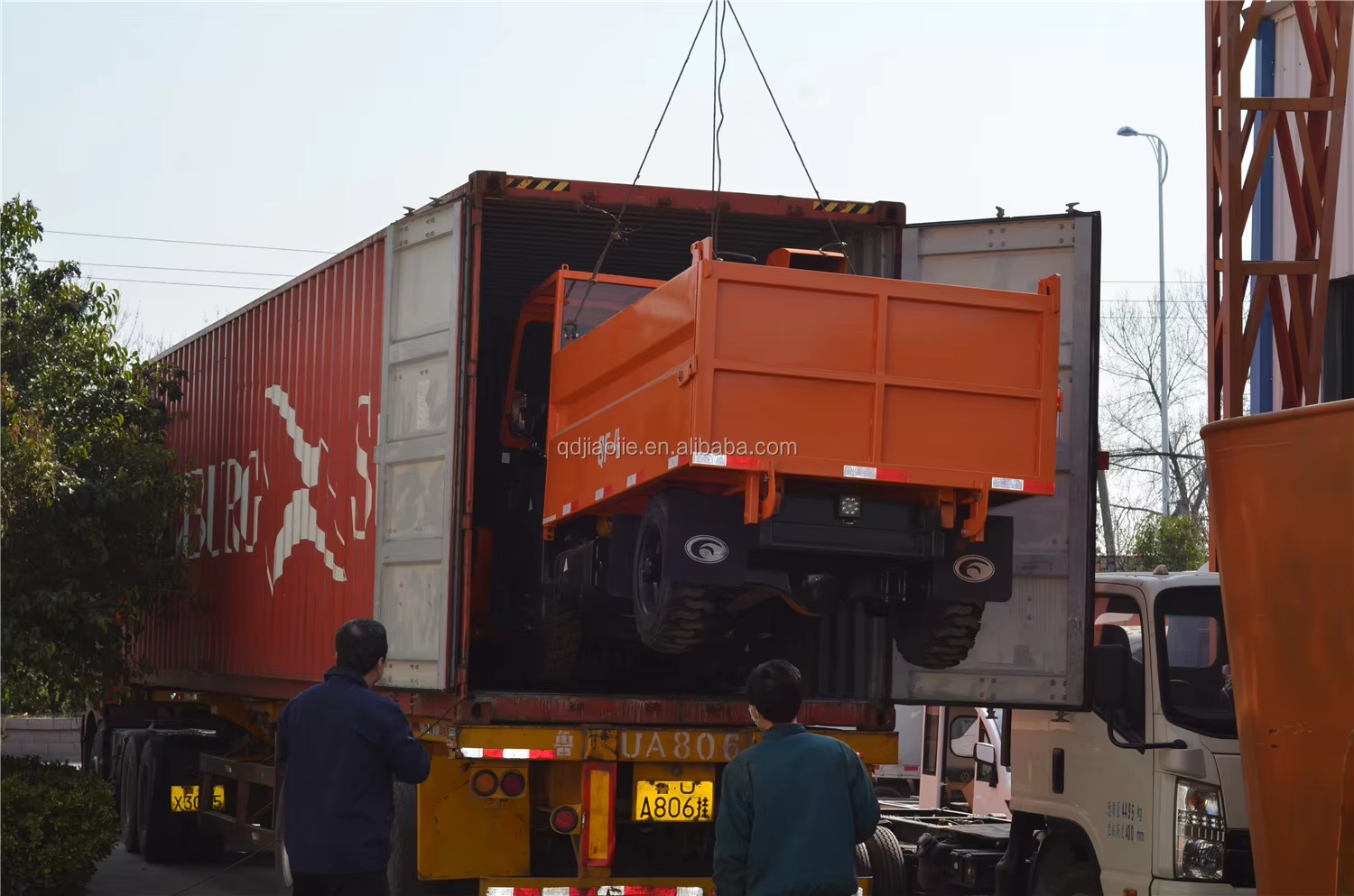

Payment and Shipping

product-aad34

How to ensure that the manure collector works more efficiently?

The unfolded width of the manure cleaning shovel head can be adjusted according to the width of the feces channel to cover the entire cleaning channel. The wear-resistant plate at the bottom of the shovel can be close to the ground, cleaning more cleanly without damaging the ground.

What is the working principle of the manure collector?

The shovel head and dung board are used to collect dung, the scraper and chain are used for lifting, the bucket is used for self-unloading, and the exhaust gas is recycled and heated in the box.

Can the machine work continuously for a long time?

The diesel tank uses a large-area radiator to reduce the oil temperature and ensure that the engine continues to operate normally.

What should I pay attention to when using a manure cleaning truck?

After long-term use, the wear plate under the manure shovel needs to be replaced. When not in use for a long time, pay attention to cleaning the dirt on the chain and auger.
