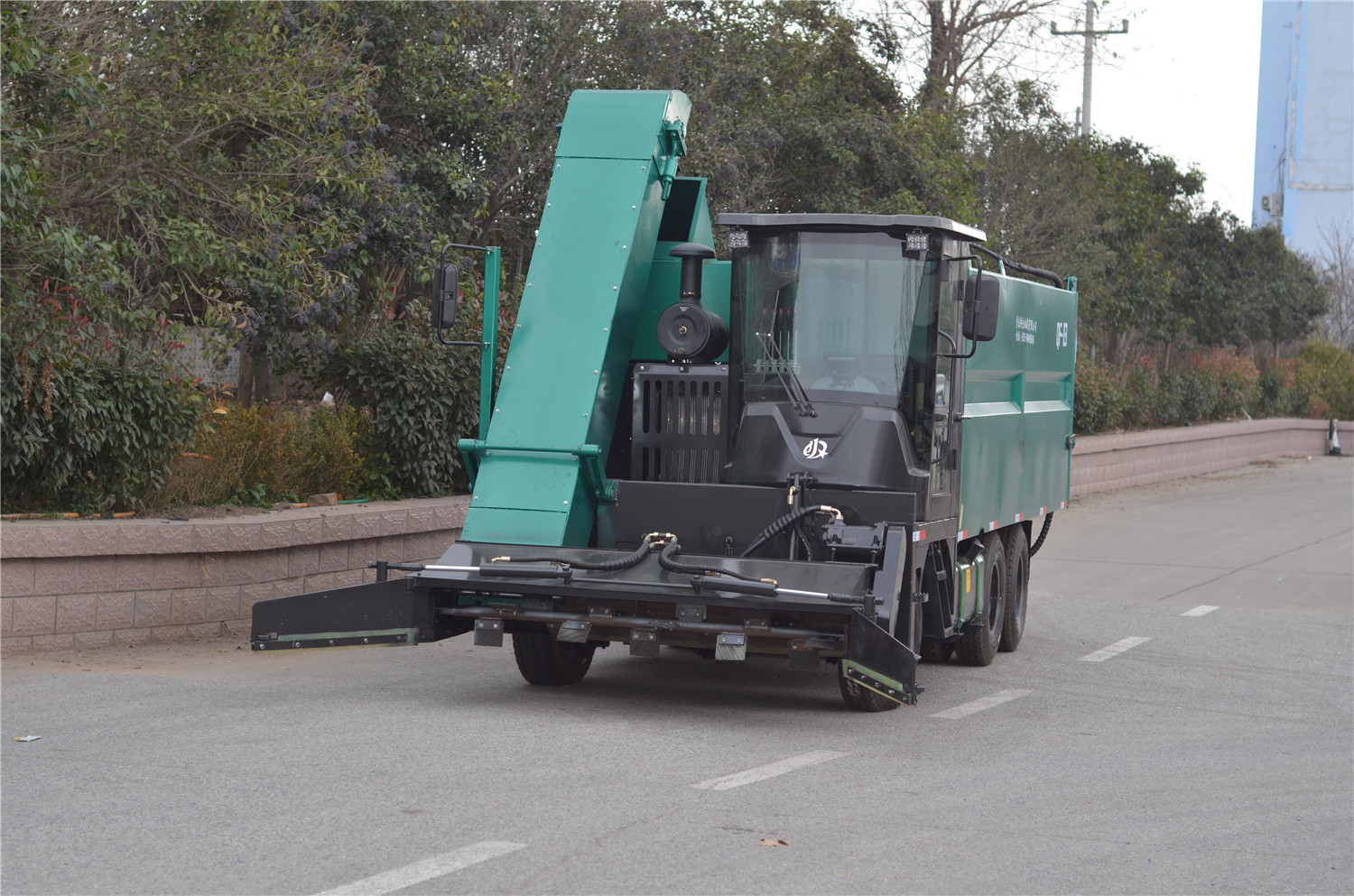

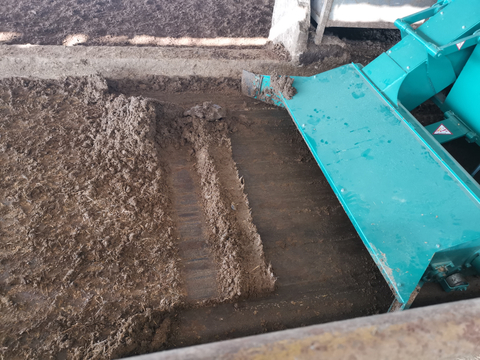

The cow manure collector has many functional advantages that make it an ideal choice for farms. The manure cleaning shovel head is designed with widened scrapers on both sides, which can be customized according to the width of the feeding channel, enabling it to quickly complete the manure cleaning work, greatly improving work efficiency.
The rubber plate at the bottom of the shovel head is designed to be in close contact with the ground, which not only ensures the cleaning effect but also does not damage the ground. The automatic manure unloading switch eliminates the need for manual operation, saving a lot of labor costs.
The machine is easy to operate. With the simple operate rod, one person can complete the entire manure removal process, reducing the difficulty of operation and the number of operators required.
In terms of adaptability, the machine is capable of adapting to any road surface, can operate efficiently in various environments, and does not require secondary cleaning, reducing the workload of farmers.
Model | L*W*H (mm) | Engine | Power(HP) | Loading Weight(kg) | Applicable Cow Farm Scale |
QF - 10 | 5800x2200x2700 | YUNNEI 4102 | 103 | 8000 | 1000 - 2000 Cows |
QF - 12 | 6200x2400x2800 | YUNNEI 4108 | 145 | 12000 | 1500 - 2500 Cows |
QF - 17 | 7500x2400x3090 | WEICHAI4108T | 221 | 15000 | 3000 - 5000 Cows |
The company provides comprehensive after - sales service for the heavy - duty cow manure collector. When delivering the machine, we will send wearing parts. The warranty period is 1 year, during which we will offer free spare parts if they are damaged. After the warranty period, we will provide parts at a reasonable price.
Cow Manure Collector Configuration
Fully Welded Body: Q355B Steel
Diesel Engine
YUNNEI 4108 powerful diesel engine. 4 cyclinder, strong power and low fuel consumption, easy maintenance.

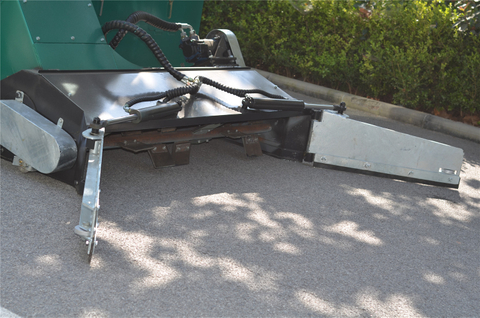

Adjustable scraper width
The hydraulic cylinder expands the scraper to both sides, and the maximum width of manure removal can reach 3.6 meters.
Bottom Wheel
By enabling the shovel to glide and roll on the ground, it reduces resistance, prevents damage to the surface, and lowers energy consumption.

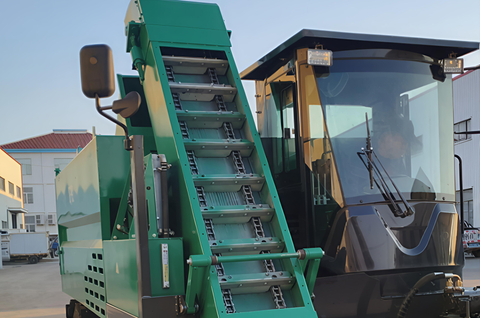

Chain Lifting
When the manure scraper collects some excrement/feces, they will be transported to the rear via chains and rubber plates.
Inside auger
The rotating auger inside the box prevents manure from clogging at the entrance.
Operate Rod
Only one driver needs to sit in the cab and push the pull rod to complete the manure removal work, saving a lot of labor and easy to operate.
Oil Cooler
Utilize a large area oil cooler to lower oil temperature, ensuring the engine operates continuously and normally.
Use Of Cow Manure Collector
Application scenarios

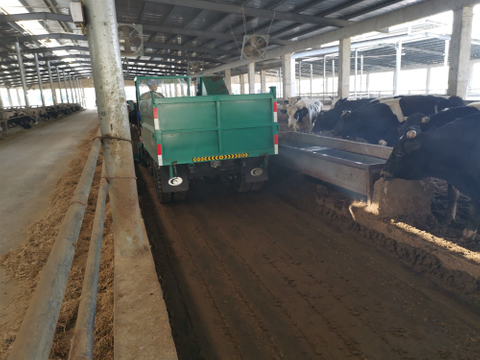

Dairy Farm: The scale of dairy farming is large and the yield of manure is high. The manure cleaning truck can quickly clean the manure in areas such as cowsheds and milking parlors, keeping the environment clean and improving milk quality.
Beef cattle ranch: It can provide a clean and comfortable growth environment for beef cattle, promote their growth and development, and improve breeding efficiency.
Q: Why do you need a cow dung collector?
a. A comfortable experience for the cows
b. A cleaner floor results in cleaner hooves
c. Save a lot of labor
Q: Does this cow manure collection machine require electrical wiring?
The cows and yourself will experience little to no hindrance from the machine. The machine does not require cables or
gutters. This ensures a more secure living environment for the cows. Thanks to its compact design the collector can easily navi-gate in between the cows, the sorting gates and around the cubicle passages and waiting area.
Q: What advantages does this cow manure collector machine offer?
The Collector is specifically designed for barns with solid floors and takes a revolutionary diverse approach when compared to traditional manure scrapers. The Collector does not push manure, but use auger and chain to transmit it.
This makes the build-up of manure -in which cows stand - a thing of the past. This not only makes for a cleaner floor, it also ensures the cows' hooves remain cleaner. This improves both cow health and the well-being of the animals.
Q: What is the working efficiency of this cow manure collector machine?
It needs only one worker to operate and can finished 1000 cows farm's manure collecting within 2 hours which makes this job easier.lt is very effective and labor saving. It can load and unload automatically,after the dung/manure collect work is over, you can transport the dung/manure to where you need it.
Q: What about warranty?
We will send the wearing parts of each machine when delivery. Warranty is 1 Year, during this period, we will offer free spare parts if they are damaged. After warranty, we send the parts in a reasonable price.
